DPF-RGD Cleaning System | Diesel Filter Regeneration Equipment
Click the WhatsApp button to chat, or leave a message, and we will contact you within 12 hours.
Details

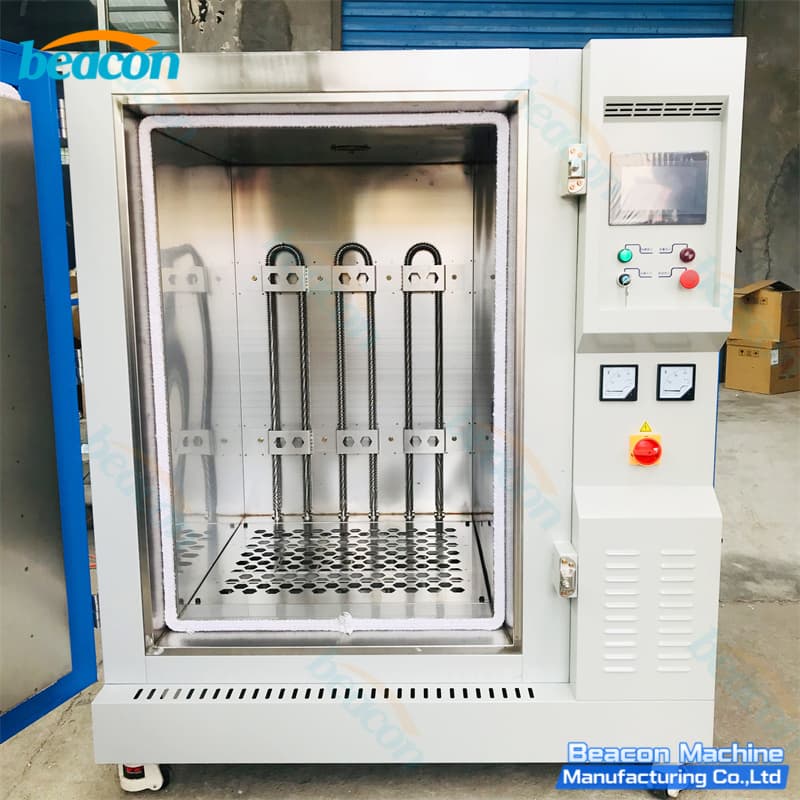

DPF-RGD Cleaning System | Diesel Filter Regeneration Equipment
Product Description
This DPF Regeneration System is designed as a DPF Baking Machine for thermal soot removal from blocked diesel particulate filters. It restores airflow without chemicals and supports continuous workshop operation.
DPF-RGD is widely used in fleet maintenance centers, this DPF Cleaning Station is a Diesel Filter Regeneration System combining heating and airflow to clean particulate filters used in trucks and buses.

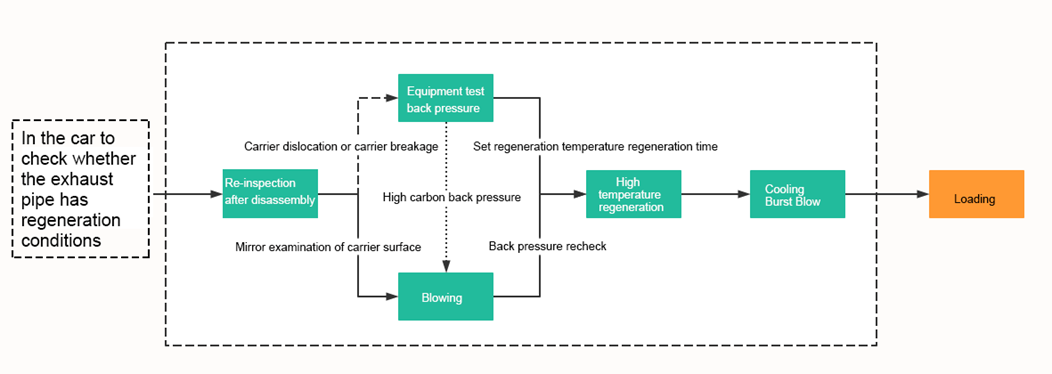

It helps recover exhaust flow, reduce backpressure and extend DPF service life for heavy-duty vehicles and construction machinery.![Z)T%ET4]9UO{@X1X40N}PE4.png](/Uploads/ueditor/image/20260210/698ade2820f89.png "698ade2820f89.png")

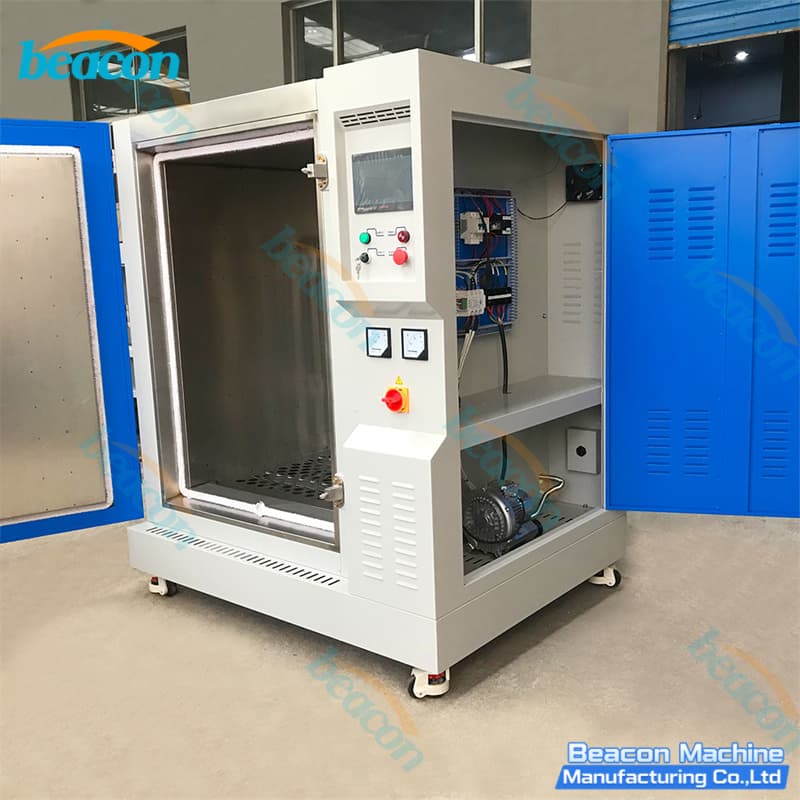

Scene picture

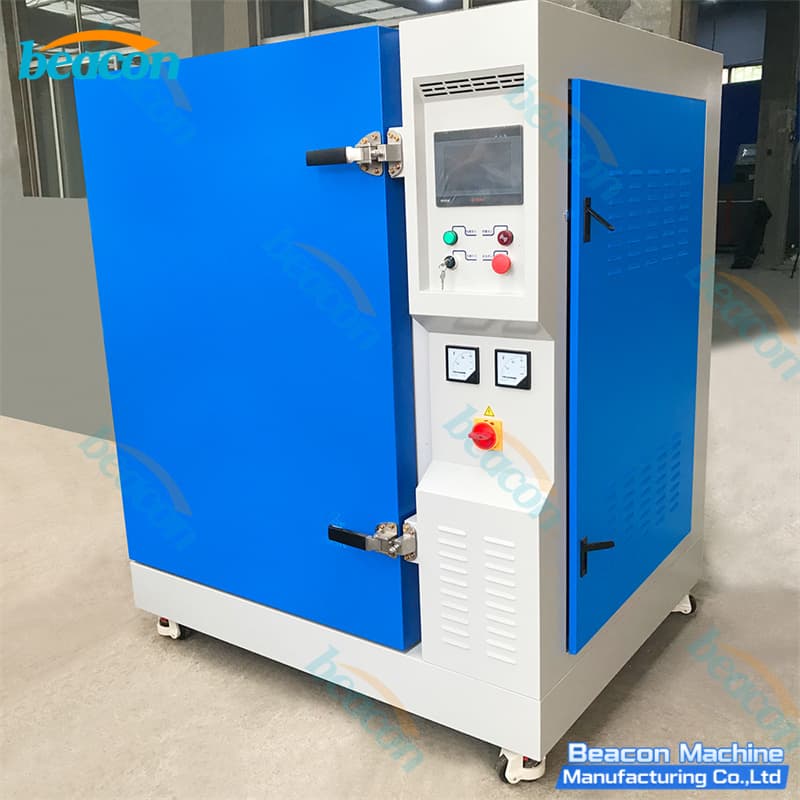

Detailed picture
DPF-RGD Cleaning System | Diesel Filter Regeneration Equipment Advantage

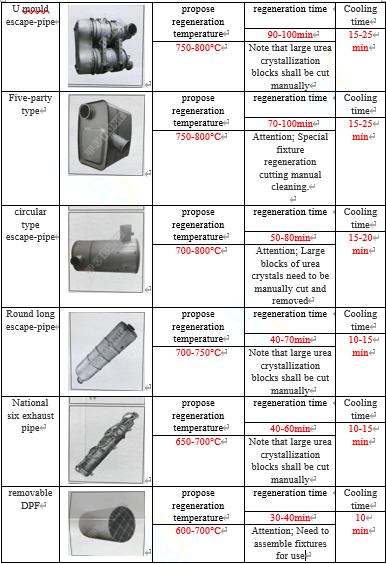

Workpiece
parameter
| Item | Specification |
|---|---|
| Model | DPF-RGD |
| Function | Thermal regeneration of DPF |
| Heating Method | Electric heat treatment |
| Max Temperature | 680°C |
| Chamber Size | 750 × 750 × 900 mm |

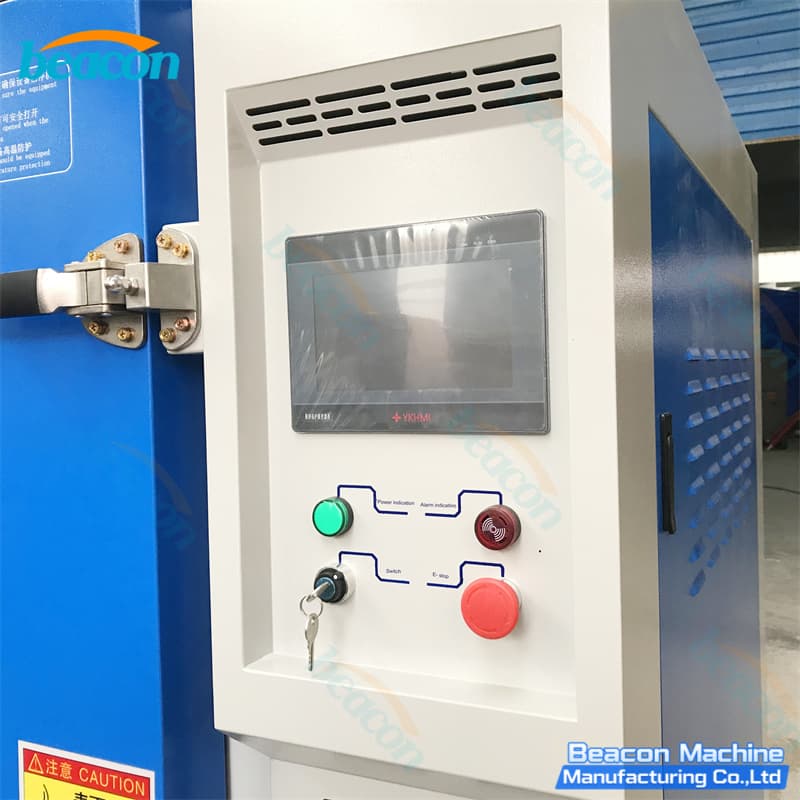

| Temperature Control | Digital PID controller |

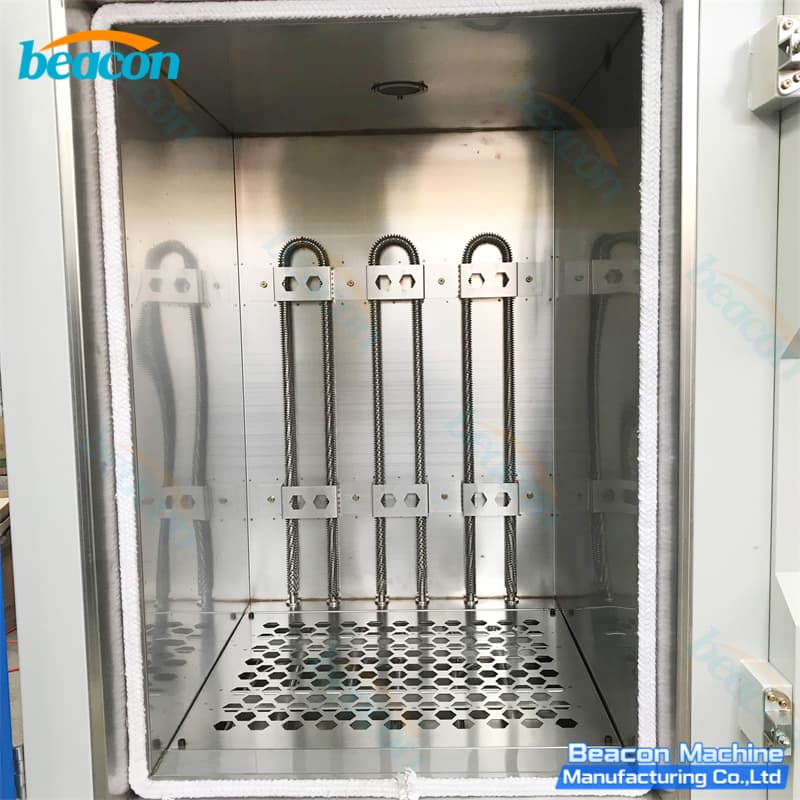

| Air Circulation | High-temperature fan |
| Regeneration Mode | Constant temperature cycle |
| Safety Protection | Over-temperature, alarm system |
| Filter Capacity | 1–2 truck DPF per cycle |
| Power Supply | 380V / 50Hz |
| Total Power | 16 kW |
| Application | Truck, bus, construction equipment |
